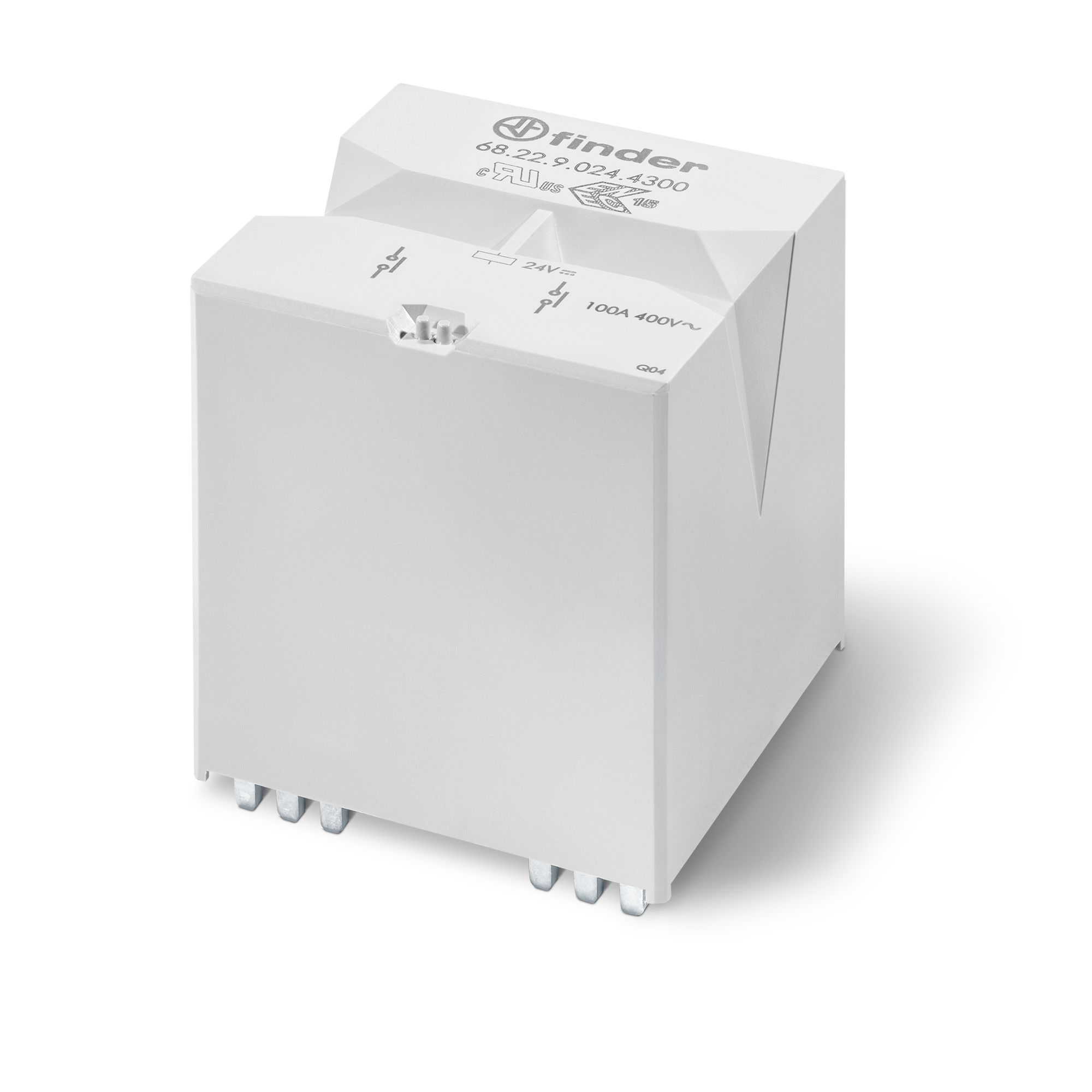

<p>The Type 68.22-4300 100 A PCB mount power relay is ideal for a variety of high power applications such as generators, UPS, pumps, photovoltaic inverters and EV chargers.</p>
<p>Other features:</p>
<ul>
<li>Contact gap ≥ 3.6 mm (according to VDE 0126-1-1, EN 62109-1, EN 62109-2)</li>
<li>DC coils, with 700 mW holding power</li>
<li>Reinforced insulation between coil and contacts</li>
<li>Suitable for use at ambient temperatures up to 85 °C</li>
<li>Conforms to EN 60335-1 resistance to heat and fire (GWIT 775 °C e GWFI 850 °C)</li>
<li>Cadmium free-contacts</li>
</ul>


Typ 68.22.9.xxx.4300 - Neues Hochleistungs-Relais für Leiterplatte mit 2 Schließerkontakte 100A

Type 68.22 - Nouveau relais de puissance 100A pour circuit imprimé

Тип 68.22 - Силовые реле 100 A
